Front wall / wheel mounting plates

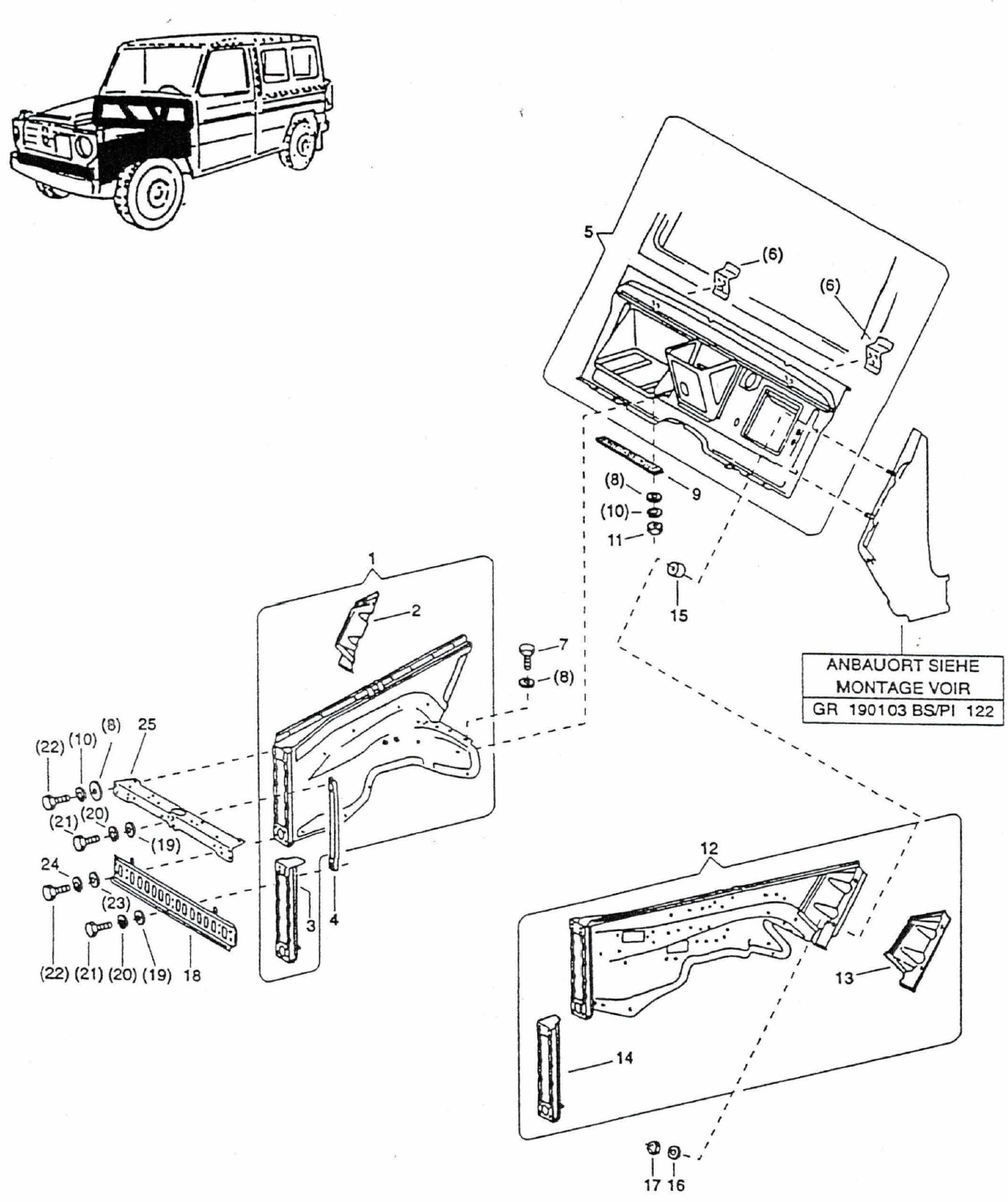

Product overview by image number (exploded view)

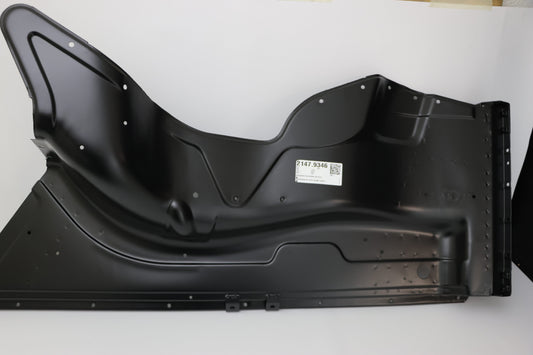

1. FRONT RIGHT WHEEL ARCH
2. REINFORCEMENT RIGHT
3. COLUMN RIGHT
4. SUPPORT
5. FRONT WALL / COMPLET

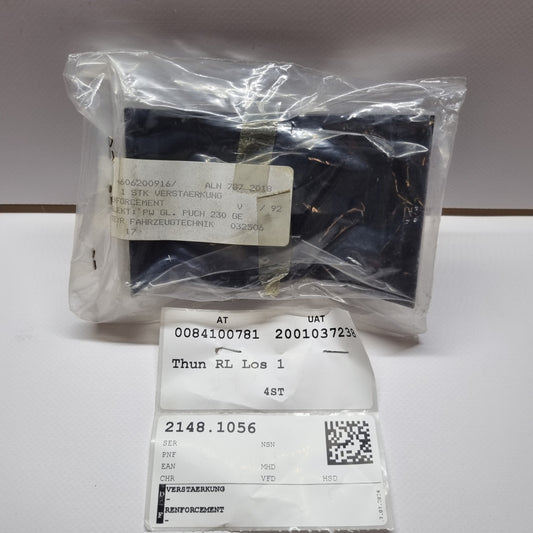

6. REINFORCEMENT

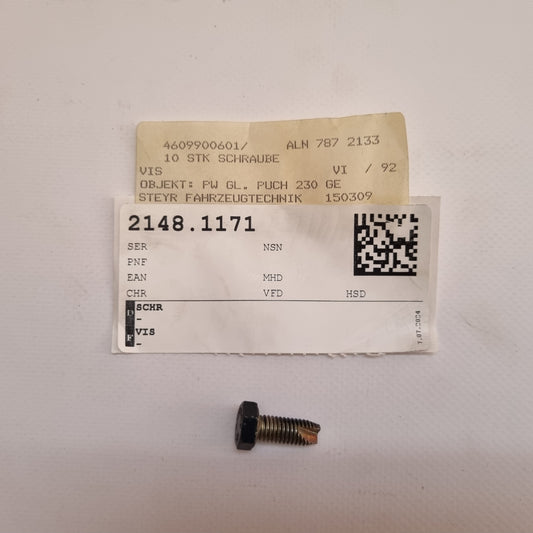

7. HEXAGON SCREW M8X20 ISO 4017
8. WASHER A d8.4/16X1.6MM DIN 125

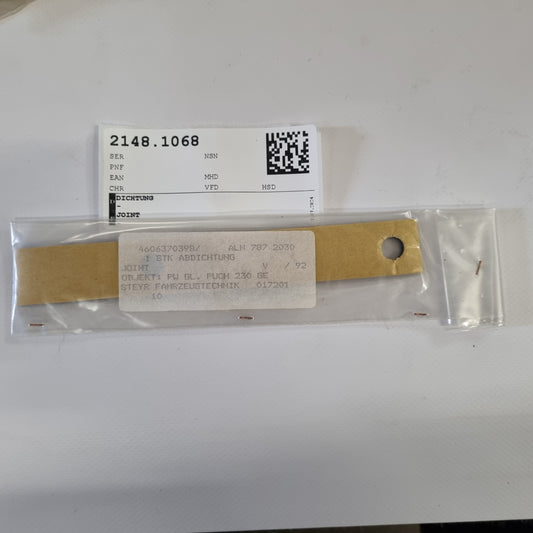

9. SEAL
10. SPRING RING CURVED A d8MM DIN 128
11. HEXAGON NUT M8 ISO 4032
12. FRONT LEFT WHEEL ARCH

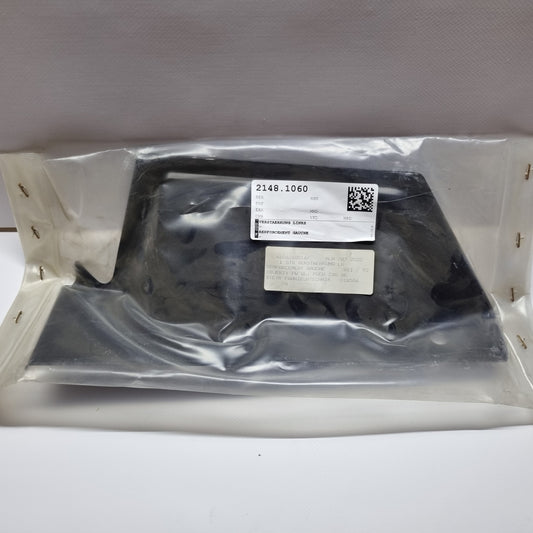

13. REINFORCEMENT LEFT

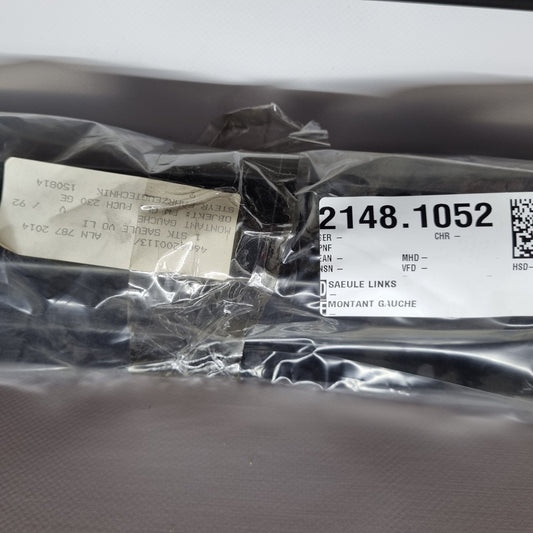

14. COLUMN LEFT

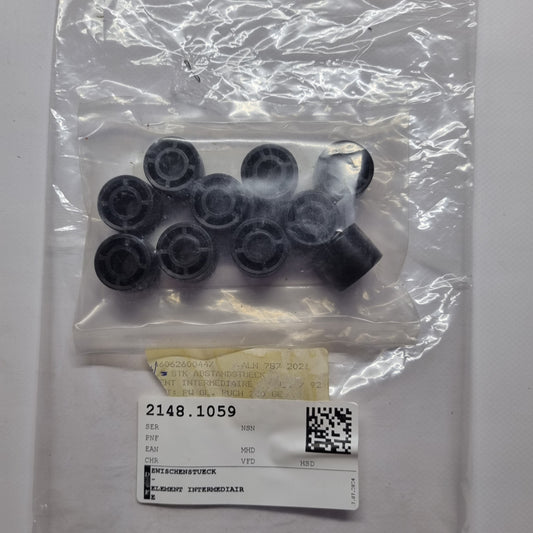

15. INTERMEDIATE PIECE
16. WASHER A d10.5/20X2MM DIN 125
17. SECURITY NUT M10
17. LOCK NUT V M10 DIN 980 S=17
18. REINFORCEMENT
19. WASHER A d6.4/12X1.6MM DIN 125
20. SPRING RING
21. SCREW
22. SCREW
24. SPRING RING A d8MM

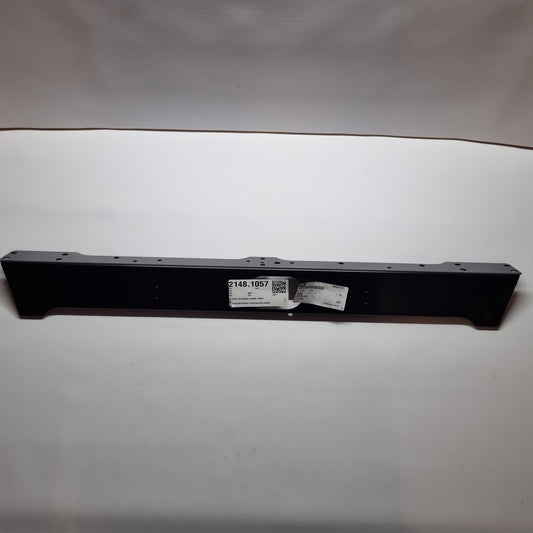

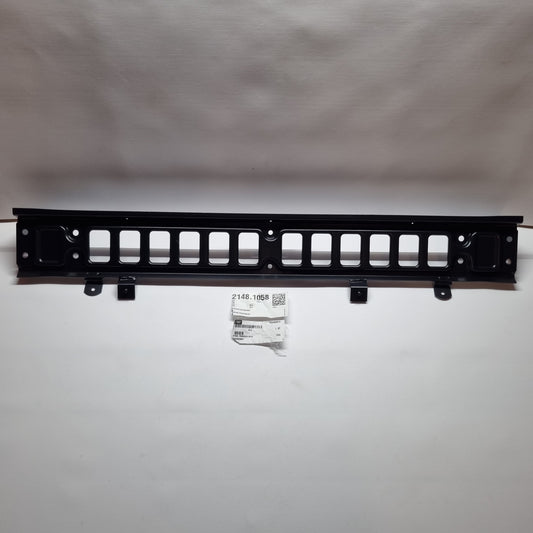

25. Reinforcement at the top front

Do you need help?

Check the exploded view to see which spare part you need.

You can find the corresponding number in the product overview.

If you're unsure or can't find the right spare part, don't hesitate to contact us!
('Contact' > 'Contact us')

The spare parts come from the former stocks of the Swiss Army.
Most of the parts are original Mercedes or Bosch items that were manufactured for the Puch 230 GE.
