Heat exchanger / fan

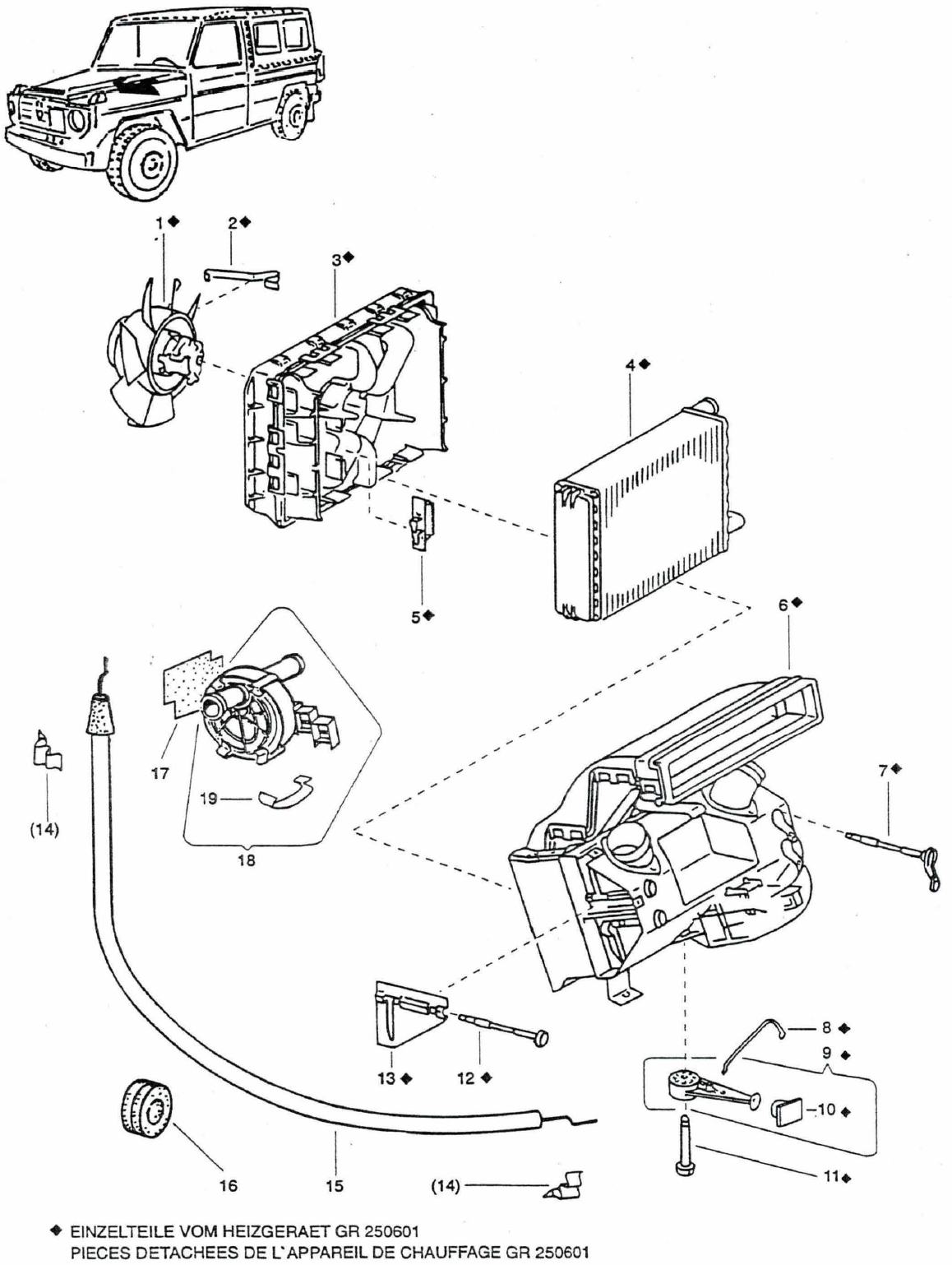

Product overview by image number (exploded view)

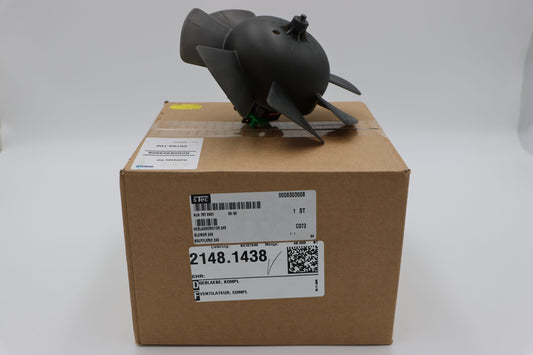

1. BLOWER / COMPONENT

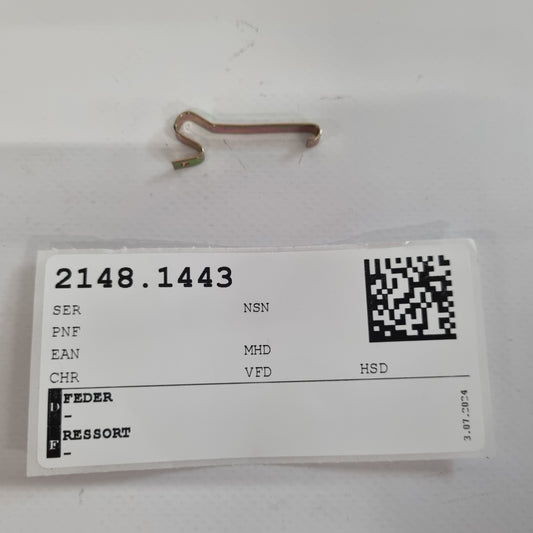

2. SPRING
3. HOUSING BOTTOM
4. HEAT EXCHANGER

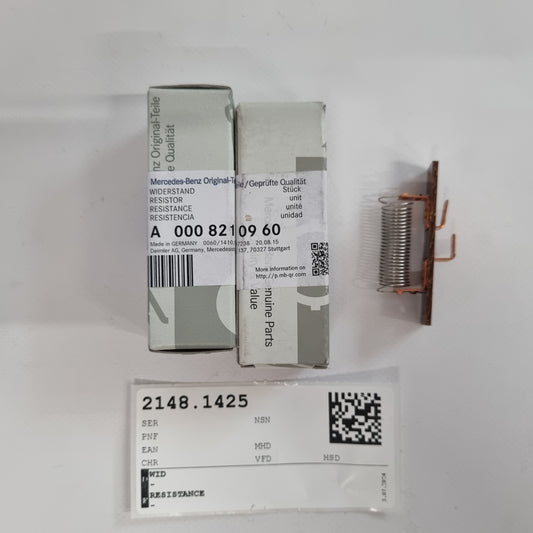

5. RESISTANCE
6. HOUSING TOP

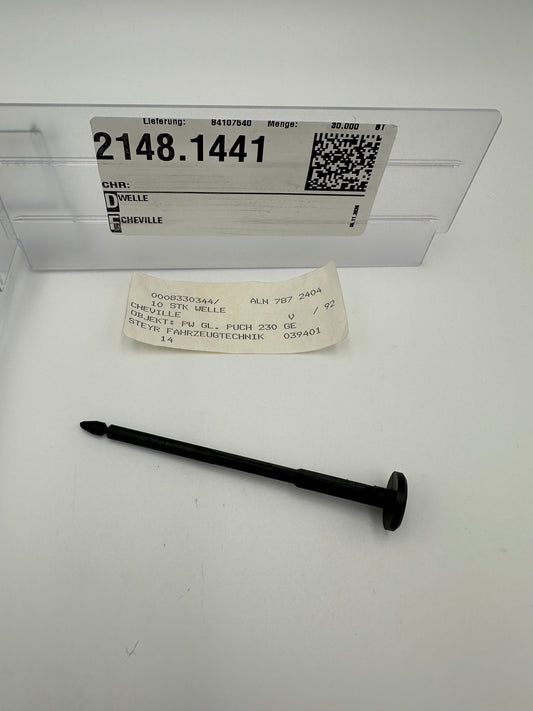

7th Wave

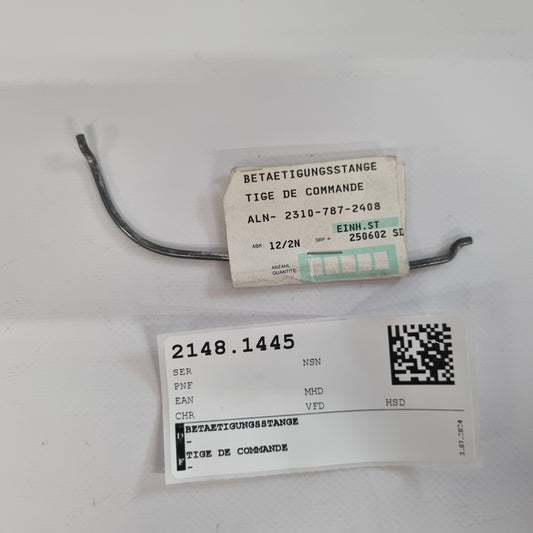

8. Operating rod

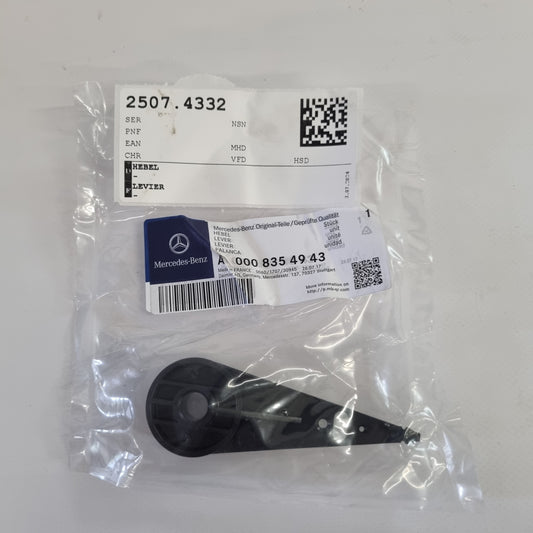

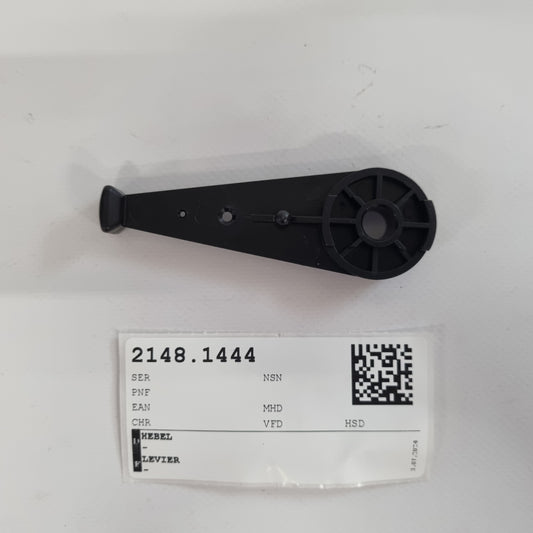

9. LEVER
9. LEVER
10. BUTTON

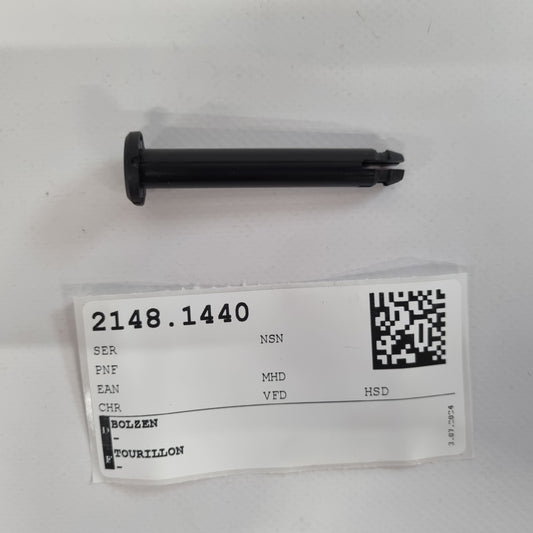

11. BOLT
12th Wave

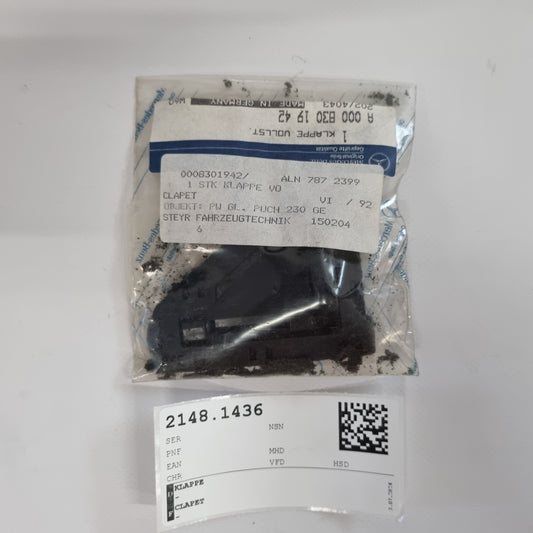

13. FLAP
14. BRACKET
15. BOWDEN CABLE

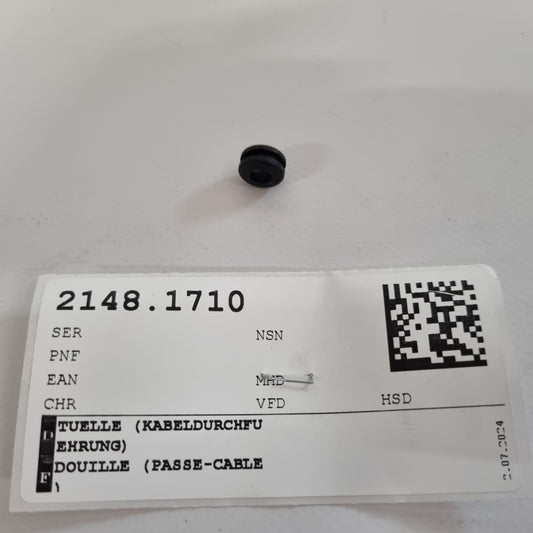

16. Grommet
17. UNDERWRITING
18. VALVE / WITH CLAMPS
19. BRACKET

Do you need help?

Check the exploded view to see which spare part you need.

You can find the corresponding number in the product overview.

If you're unsure or can't find the right spare part, don't hesitate to contact us!
('Contact' > 'Contact us')

The spare parts come from the former stocks of the Swiss Army.
Most of the parts are original Mercedes or Bosch items that were manufactured for the Puch 230 GE.
