water heater

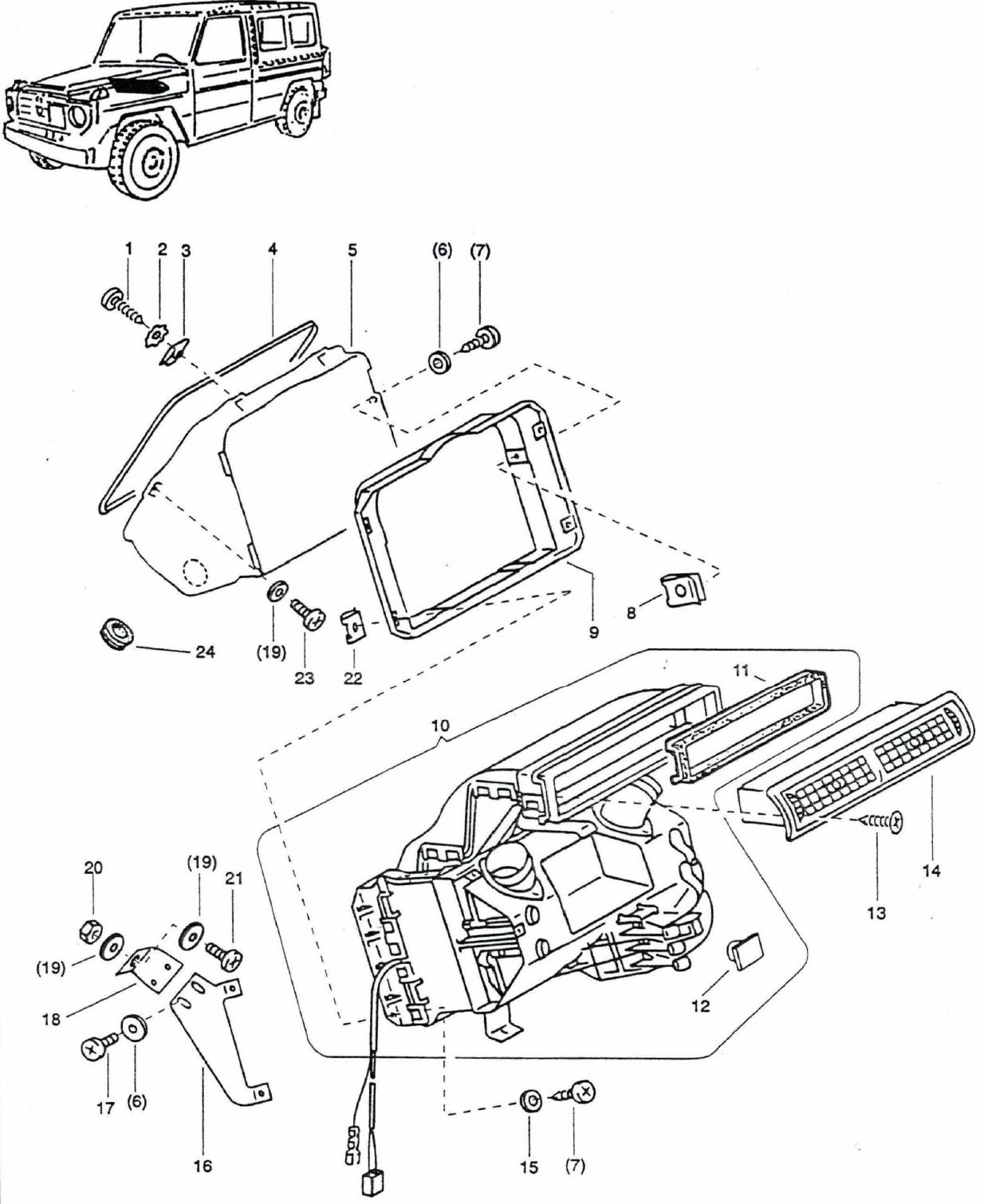

Product overview by image number (exploded view)

1. Phillips head self-tapping screw
2. FASTENING WASHER A d6.4MM DIN 6798

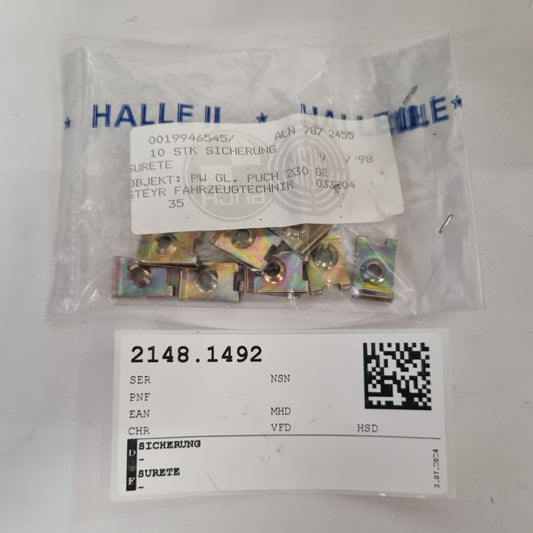

3. SECURITY
4. SEAL
5. CHANNEL
6. Washer d5.3/15x1.2mm DIN 9021
7. Phillips head self-tapping screw

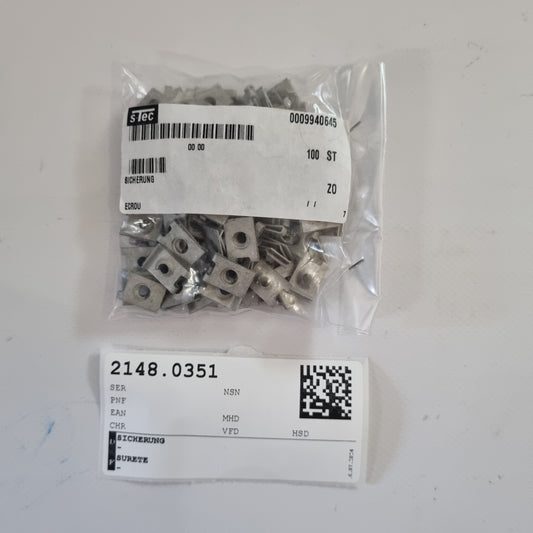

8. SECURITY

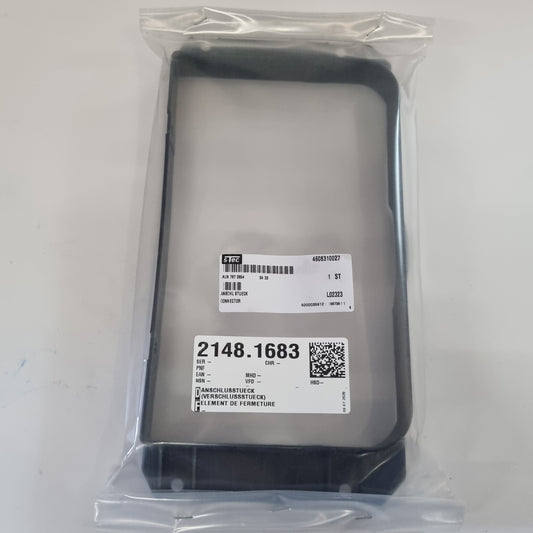

9. CONNECTION PIECE
10. HEATER 24V / COMPLETE
10. HEATER 24V / COMPLETE
11. SEAL
12. BUTTON
13. COUNTERSUNK TAPPING SCREW 80 DEGREE WITH CROSS
14. Blinds
15. WASHER A d5.3/10X1MM DIN 125

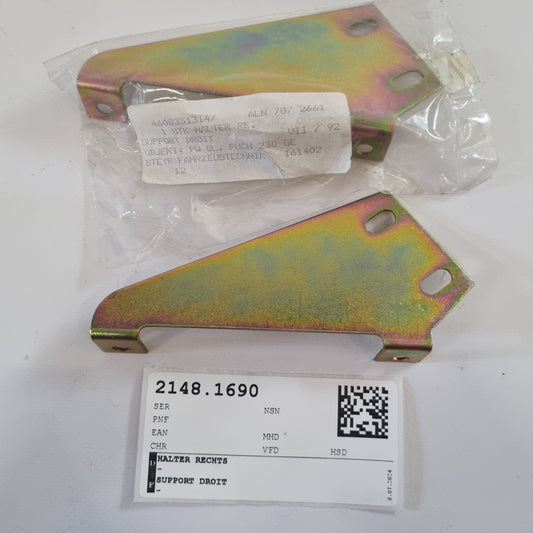

16. HOLDER RIGHT

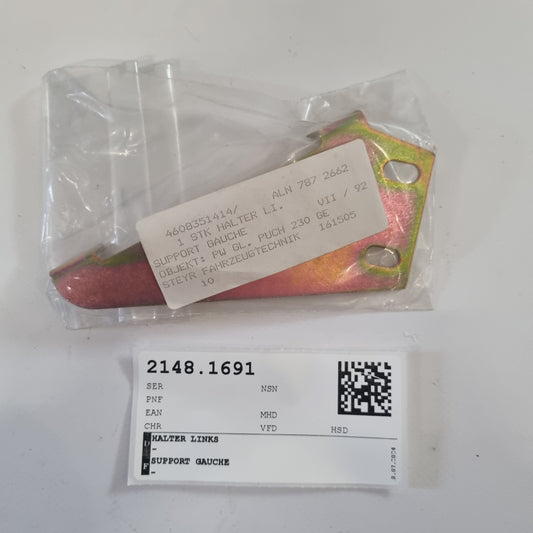

16. HOLDER LEFT
17. Phillips head cylinder head screw

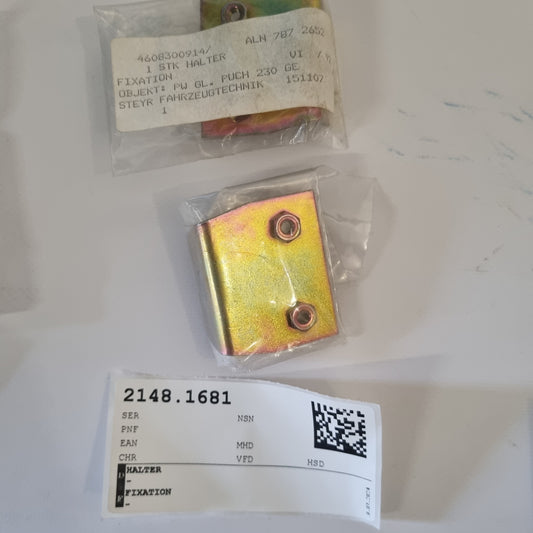

18. HOLDER
19. WASHER A d6.4/12X1.6MM DIN 125
20. HEXAGON NUT M6 ISO 4032
21. Phillips head cylinder head screw
22. SECURITY
22. SECURITY
23. Phillips head cylinder head screw
24. RUBBER GROMMET

Do you need help?

Check the exploded view to see which spare part you need.

You can find the corresponding number in the product overview.

If you're unsure or can't find the right spare part, don't hesitate to contact us!
('Contact' > 'Contact us')

The spare parts come from the former stocks of the Swiss Army.
Most of the parts are original Mercedes or Bosch items that were manufactured for the Puch 230 GE.
