water pump

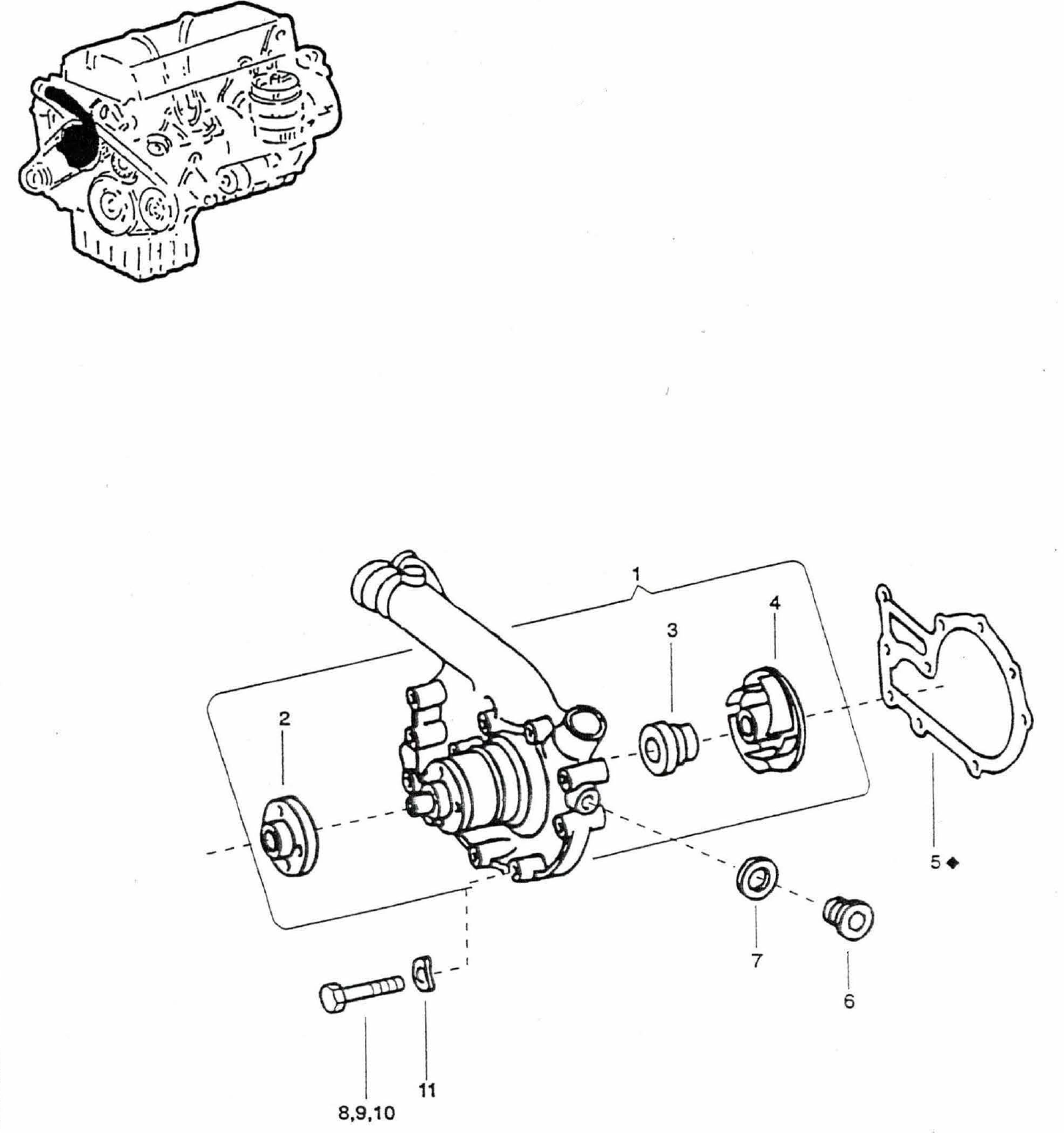

Product overview by image number (exploded view)

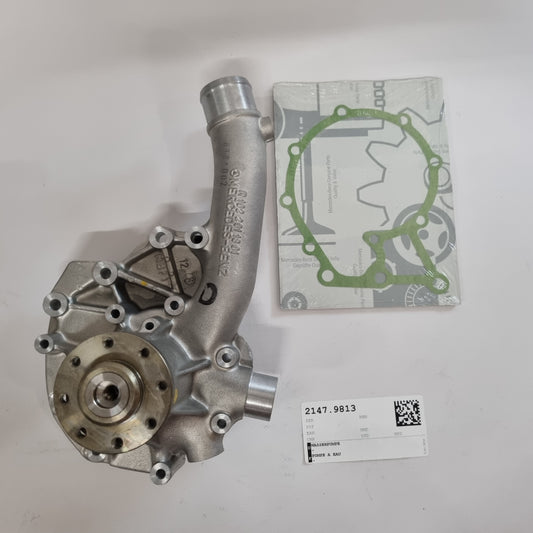

1. WATER PUMP
2. FLANGE

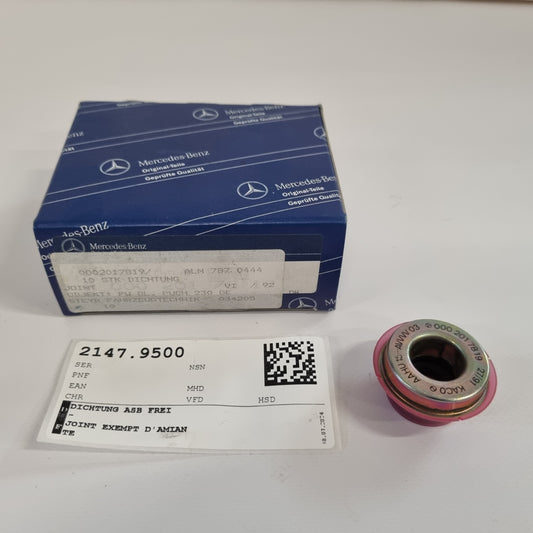

3. SEAL ASB FREE

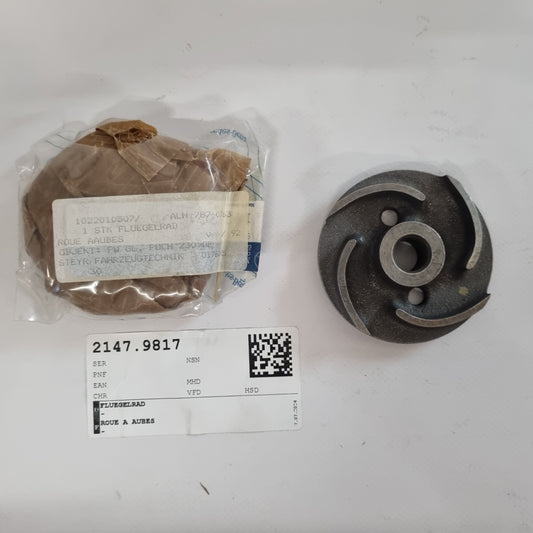

4. IGNITION WHEEL

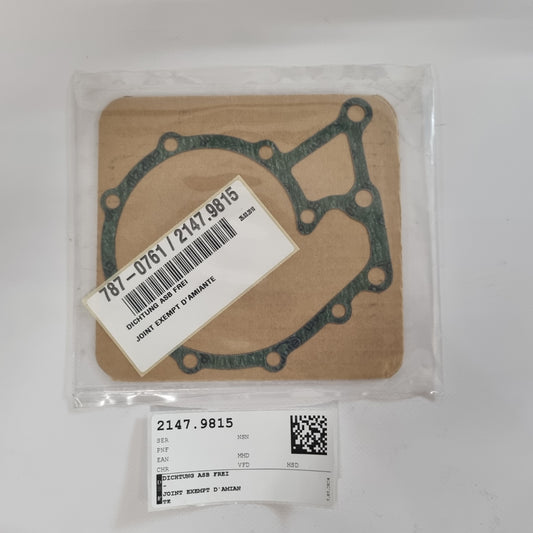

5. SEAL ASB FREE
6. PLUG SCREW M18X1.5
7. SEALING RING A d18/24X1.5MM
8. HEXAGON SCREW M6X55/18 ISO 4014
9. HEXAGON SCREW M6X30/18 ISO 4014
10. HEXAGON SCREW M6X85 DIN 933 8.8 A2P
11. SPRING WASHER B d6MM DIN 137 FD-ST A2P

Do you need help?

Check the exploded view to see which spare part you need.

You can find the corresponding number in the product overview.

If you're unsure or can't find the right spare part, don't hesitate to contact us!
('Contact' > 'Contact us')

The spare parts come from the former stocks of the Swiss Army.
Most of the parts are original Mercedes or Bosch items that were manufactured for the Puch 230 GE.
