Windshield frame / screen

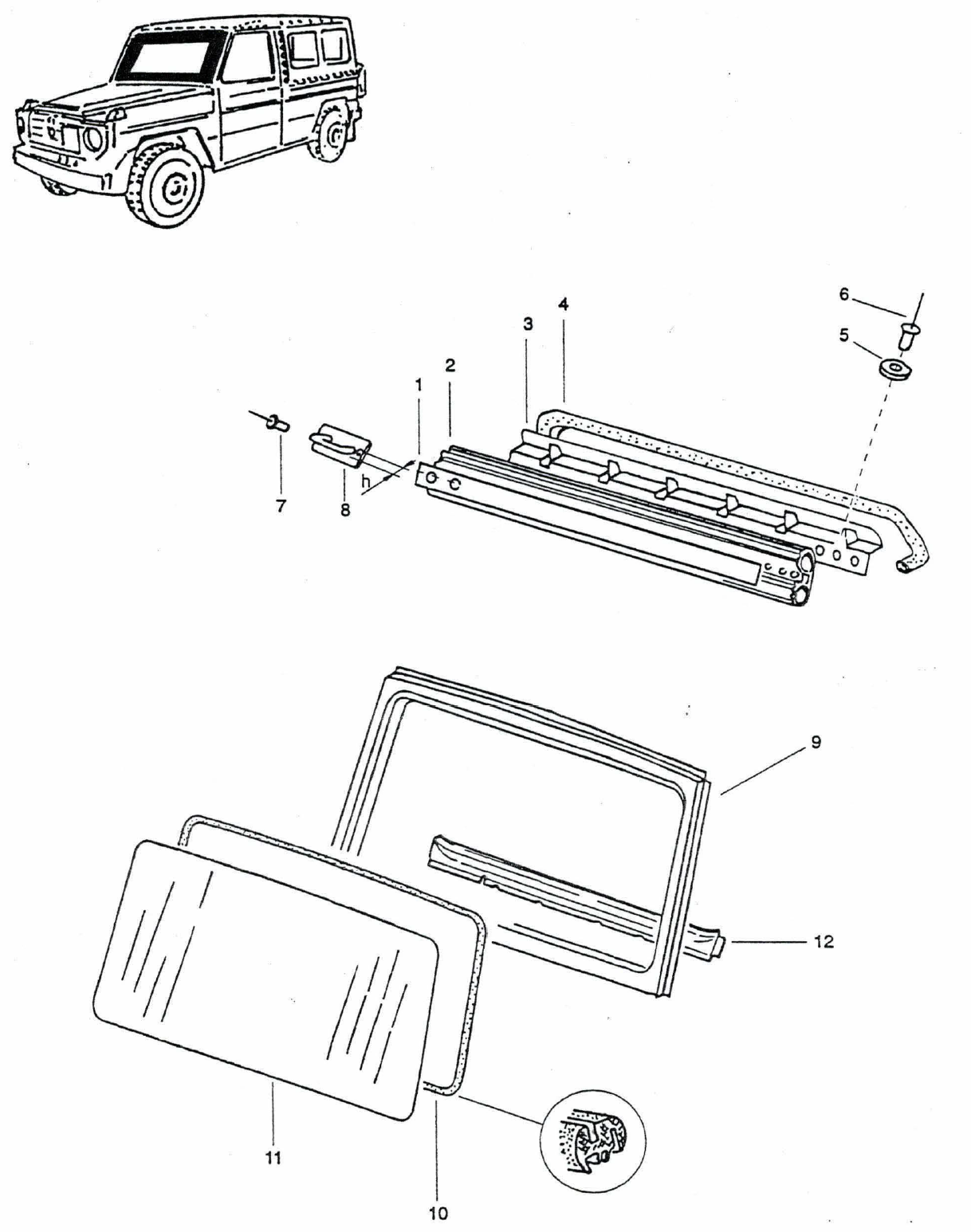

Product overview by image number (exploded view)

1. BAR
2. SEALING
3. COVER RAIL
4. EDGE PROTECTION
4. EDGE PROTECTION
5. WASHER A d5.3/10X1MM DIN 125

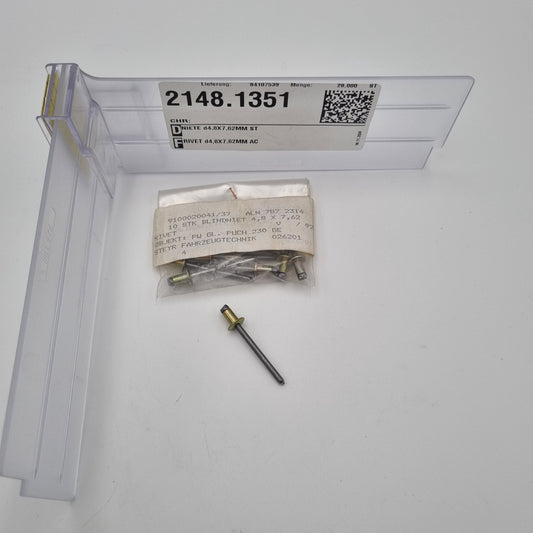

6. RIVET d4.8X7.62MM ST
7. RIVET
7. RIVET d4X14.5MM ST

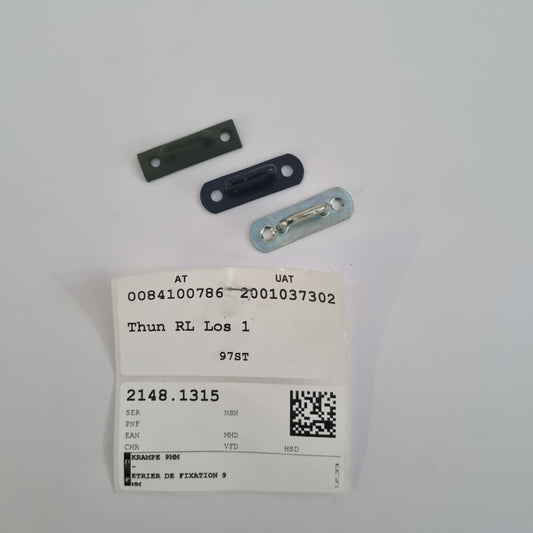

8. CRAMPE 9MM
9. WINDSHIELD FRAME

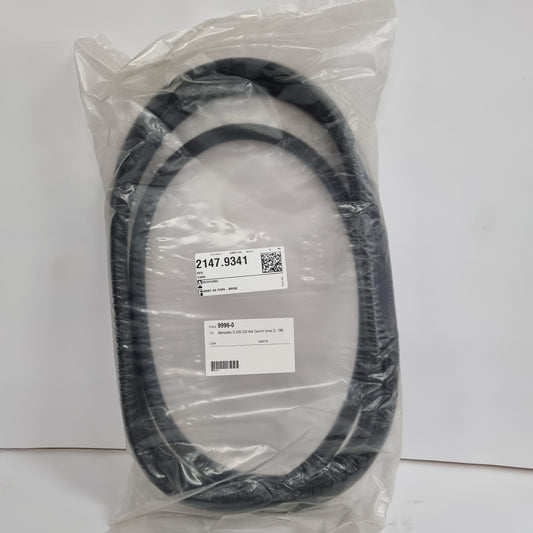

10. SEAL
11. WINDSHIELD
12. WINDOW FRAME / BOTTOM / INSIDE

Do you need help?

Check the exploded view to see which spare part you need.

You can find the corresponding number in the product overview.

If you're unsure or can't find the right spare part, don't hesitate to contact us!
('Contact' > 'Contact us')

The spare parts come from the former stocks of the Swiss Army.
Most of the parts are original Mercedes or Bosch items that were manufactured for the Puch 230 GE.
