ignition distributor

Product overview by image number (exploded view)

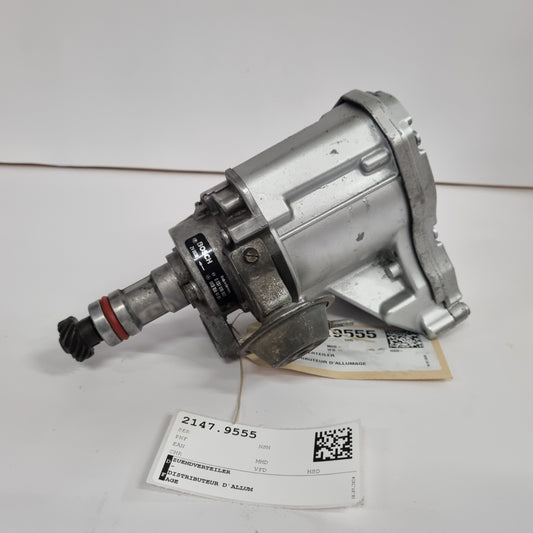

1. IGNITION DISTRIBUTOR
2. COVER WITH FASTENING SCREW

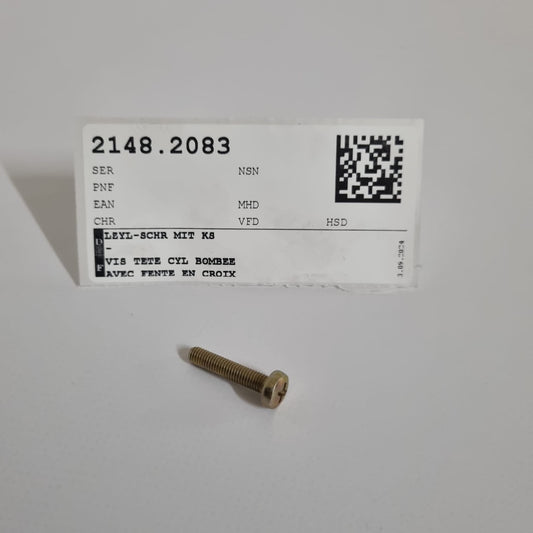

3. Phillips head cylinder head screw
4. SPRING RING
5. Phillips head cylinder head screw

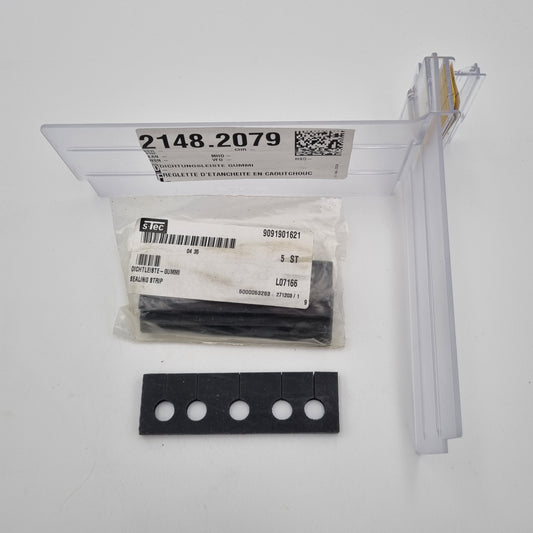

6. RUBBER SEAL STRIP
7. PROTECTIVE HOOD

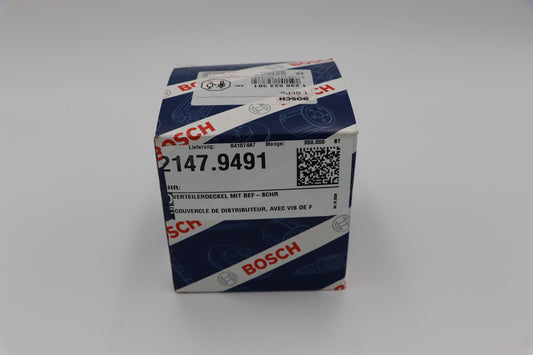

8. DISTRIBUTOR COVER WITH FASTENING SCREW
9. LENS SCREW
10. DISTRIBUTOR
11. DISTRIBUTOR COVER
12. VACUUM CANISTER
13. CONNECTION
14. SEAL

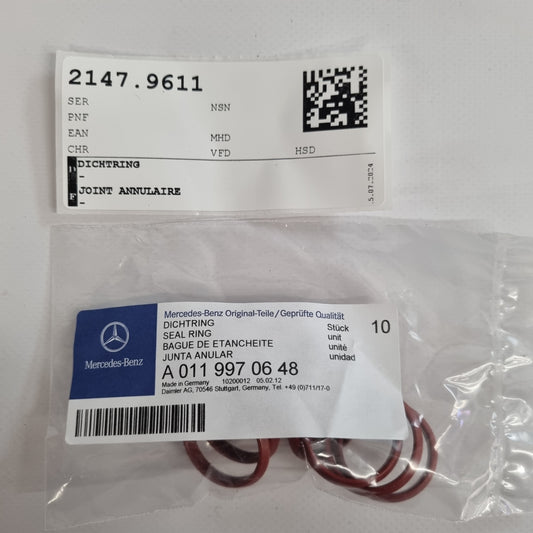

15. SEALING RING
16. Tapered grooved pin
17. DISTRIBUTION PINION
18. HEXAGON SCREW M8X30 ISO 4017
19. Washer d8.4/21x4mm DIN 7349

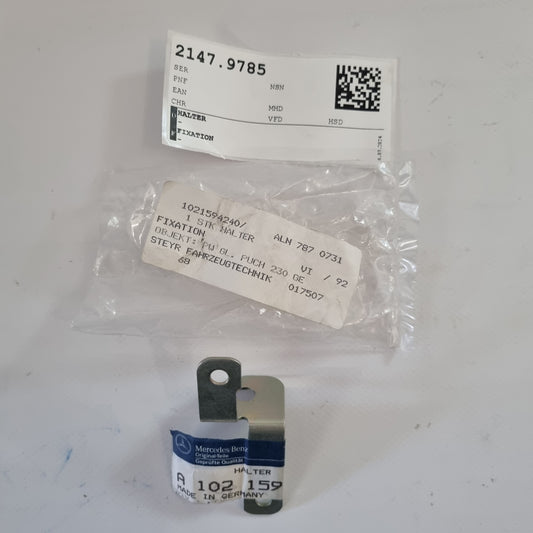

20. HOLDER
21. CLAMP
22. SENDER OT
23. HEXAGON NUT M5 ISO 4032
23. HEXAGON NUT M5 ISO 4032
25. SPRING WASHER B d5MM DIN 137

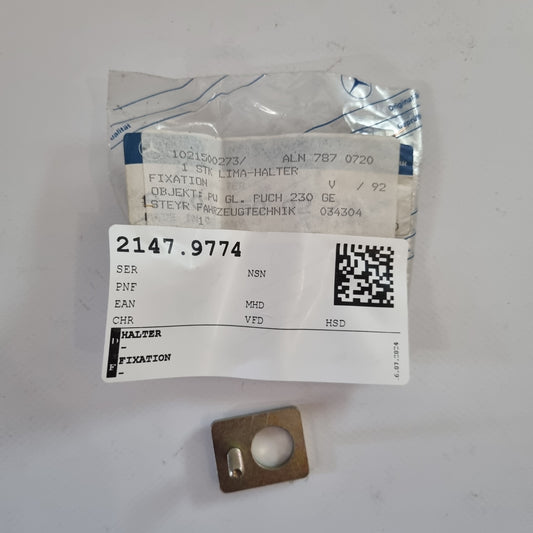

26. HOLDER
27. HOLDER
28. INDUCTIVE SENSOR COIL / SET
29. SEEGER V-RING A d14X1MM FD ST

Do you need help?

Check the exploded view to see which spare part you need.

You can find the corresponding number in the product overview.

If you're unsure or can't find the right spare part, don't hesitate to contact us!
('Contact' > 'Contact us')

The spare parts come from the former stocks of the Swiss Army.
Most of the parts are original Mercedes or Bosch items that were manufactured for the Puch 230 GE.
