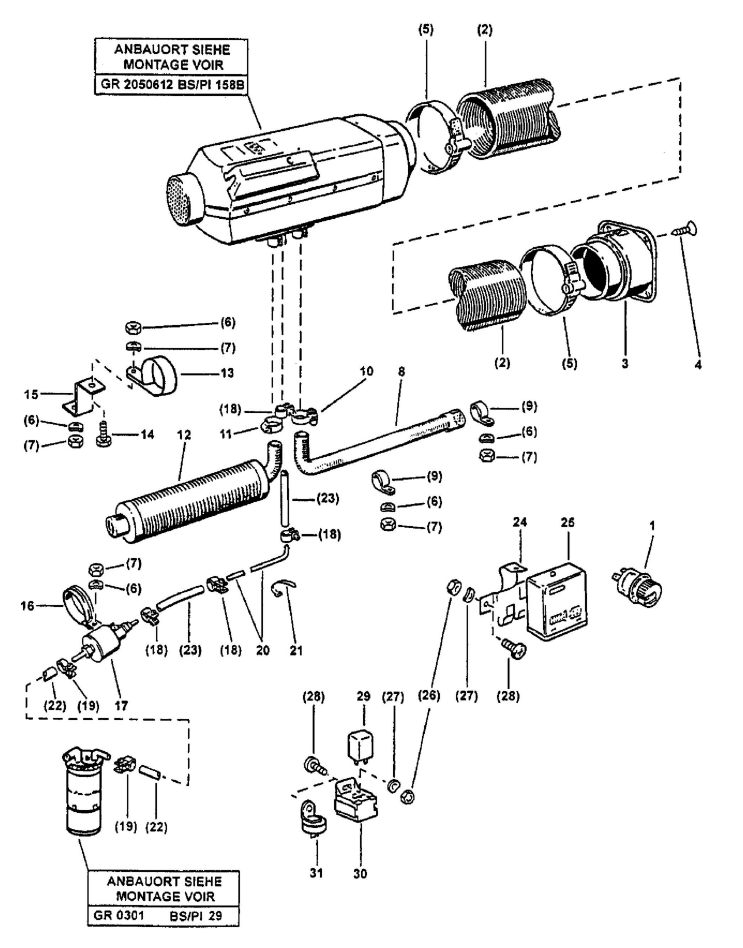

Product overview by image number (exploded view)
1. SWITCH
2. HOSE d75MM METER
3. NOZZLE
4. COUNTERSUNK TAPPING SCREW 80 DEGREE WITH CROSS
5. HOSE CLAMP 70-90MM
6. SPRING WASHER A d6MM DIN 137
7. HEXAGON NUT M6 ISO 4032
8. EXHAUST PIPE d24MM
9. CLAMP
10. HOSE CLAMP d26.5X16MM ST STAINLESS
11. CLAMP d20-32MM
12. INTAKE SILENCER
13. HOSE CLAMP
14. HEXAGON SCREW M6X16 ISO 4017
15. HOLDER
16. PIPE CLAMP WITH RUBBER PROFILE FOR d34MM,
17. DOSING PUMP
18. HOSE CLAMP d9MM
19. CLAMP A11/9-N16002-ST
20. PIPE d1.5X1.25MM PLASTIC METER
21. CABLE TIES 4.6X146MM SST3S
22. HOSE d5X3X400MM
23. HOSE d3.5X3X100MM
24. CONTROL UNIT HOLDER
25. CONTROL UNIT
26. HEXAGON NUT M5 ISO 4032
27. SPRING WASHER B d5MM DIN 137
28. Phillips head cylinder head screw
29. RELAY
30. BASE
31. DIODE CAPSULE
1. HEATER TYPE B3LC 24V
2. CAP
3. HOOD
4. Glow plug
5. LINING CANDLE TUBE
6. HEAT EXCHANGER
7. SEAL
8. LID WITH SEAL
9. Phillips head socket head cap screw
10. INSULATION SHELL
11. HEAT EXCHANGER SEAL
12. WASHER A d6.4/12X1.6MM DIN 125
13. HEXAGON NUT M6
14. SEAL
15. MANTEL SHELL / BOTTOM
16. Stud screw M6x20
17. Phillips head cylinder head screw
18. BLOWER
19. CIRCUIT PRINTED 24V
20. PROTECTIVE GRILL d75MM
21. EXPANDING RIVET
22. SECURITY
23. MANTEL SHELL / TOP
24. FLAME SENSOR
25. BRACKET
26. CYLINDER HEAD SCREW M3X10 DIN 84 4.8 A2P
27. SENSOR / OVERHEATING
1. COVER FOR ELECTRIC MOTOR
2. WASHER A d5.3/10X1MM DIN 125
2. WASHER A d5.3/10X1MM DIN 125
3. Phillips head self-tapping screw
4. LENS HEAD SHEET SCREW
5. ELECTRIC MOTOR
6. LEVER
7. HOLDER FOR ELECTRIC MOTOR
8. LEVER
9. FLAP / COMPLET
10. SEAL 120X260MM
11. CLAMPING SLEEVE d2.5X12MM DIN 7346 / FD ST
12. SEAL 120X260MM
13. RUBBER BUFFER
14. BRACKET
15. BOX
16. TOP SEALING FRAME
17. SEALING RUBBER
18. BLIND RIVET d4X7.87MM AL
19. Phillips head cylinder head screw
20. SEALING
21. PLUG-IN CLIP NUT
Do you need help?
Check the exploded view to see which spare part you need.
You can find the corresponding number in the product overview.
If you're unsure or can't find the right spare part, don't hesitate to contact us!
('Contact' > 'Contact us')
The spare parts come from the former stocks of the Swiss Army.
Most of the parts are original Mercedes or Bosch items that were manufactured for the Puch 230 GE.
