Cylinder head / valve seat / guide

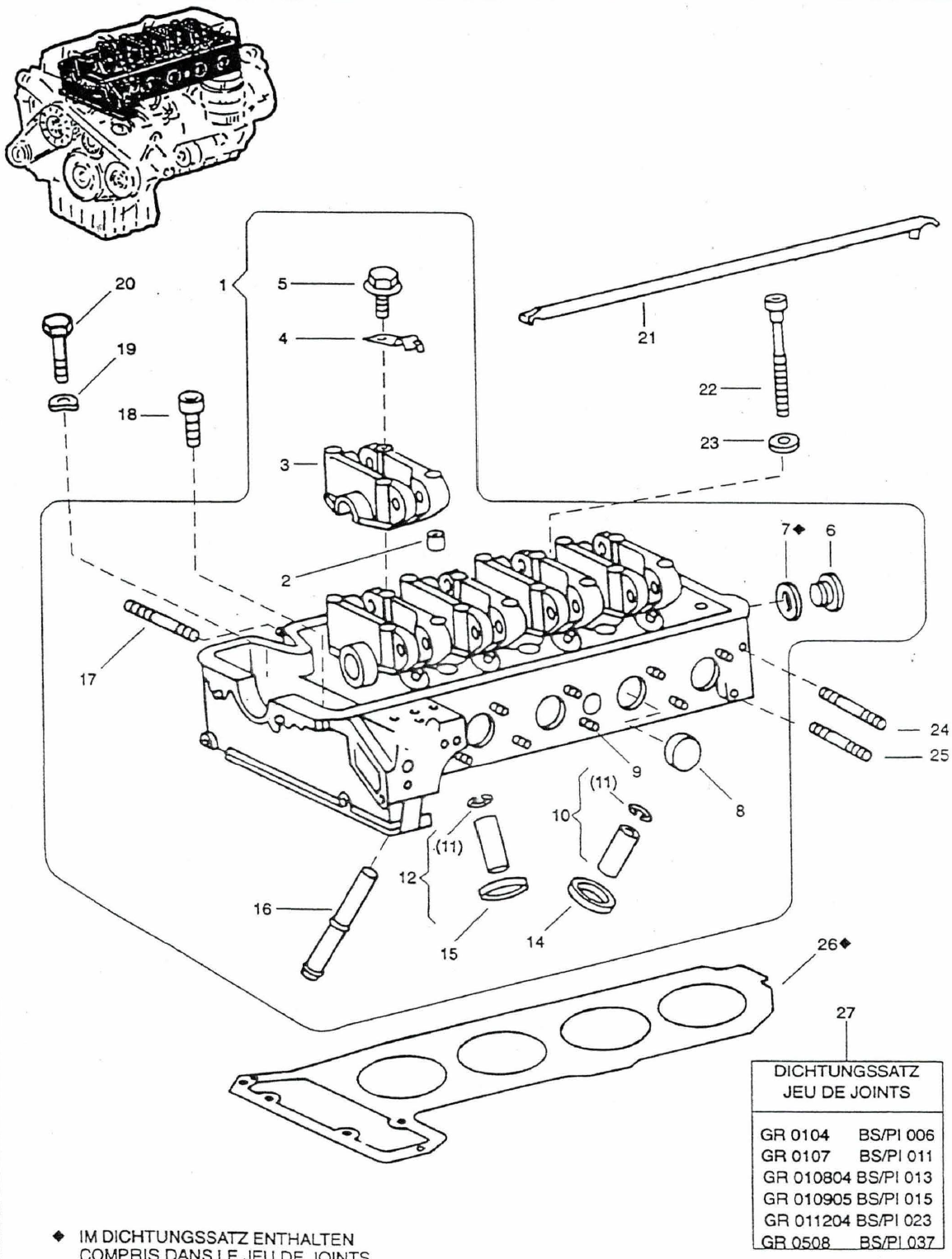

Product overview by image number (exploded view)

1. CYLINDER HEAD
2. PASS SLEEVE
3. CAMSHAFT BEARING FRONT / NORMAL
3. FRONT CAMSHAFT BEARING / REP STAGE 1
3. CAMSHAFT BEARING CENTER / NORMAL
3. CAMSHAFT BEARING CENTER / REP STAGE 1
3. CAMSHAFT BEARING CENTER / REP STAGE 2
3. CAMSHAFT BEARING REAR / NORMAL
3. REAR CAMSHAFT BEARING / REP STAGE 1
3. FRONT CAMSHAFT BEARING / REP STAGE 2
3. REAR CAMSHAFT BEARING / REP STAGE 2
4. CLAMP
5. COMBINATION SCREW
6. PLUG SCREW I M10X1 DIN 908
7. SEALING RING A d10/14X1MM
7. SEALING RING A d10/13.5X1MM
8. COVER A d25MM DIN 443 ST A2P
9. STUD SCREW M8X30/16/22 DIN 835
10. VALVE GUIDE / INTAKE / REP STAGE 1,
10. VALVE GUIDE / INTAKE / REP STAGE 2,
10. VALVE GUIDE / INTAKE / NORMAL 1,
11. Snap ring
12. VALVE GUIDE / EXHAUST / REP STAGE 1,
12. VALVE GUIDE / EXHAUST / REP STAGE 2,
12. VALVE GUIDE / EXHAUST / NORMAL 1,
14. VALVE SEAT RING / INTAKE / NORMAL / 49.10MM
14. VALVE SEAT RING / INLET / REP STAGE 1,
14. VALVE SEAT RING / INLET
15. VALVE SEAT RING / EXHAUST / NORMAL / 42.10MM
15. VALVE SEAT RING / EXHAUST / REP STAGE 2,
15. VALVE SEAT RING / EXHAUST / REP STAGE 1,
16. PIPE PIECE
17. STUD SCREW
18. Cylinder head screw with hexagon socket
19. SPRING WASHER B d8MM DIN 137
19. SPRING WASHER B d8MM DIN 137
20. HEXAGON SCREW M8X110/22 ISO 4014
21. OIL LINE
22. SCREW
23. Washer
24. Stud bolt without groove M8x22/16/18
25. STUD SCREW M8X50/16/22 DIN 835
26. CYLINDER HEAD GASKET ASB FREE
27. GASKET SET ASB FREE FOR CYLINDER HEAD

Do you need help?

Check the exploded view to see which spare part you need.

You can find the corresponding number in the product overview.

If you're unsure or can't find the right spare part, don't hesitate to contact us!
('Contact' > 'Contact us')

The spare parts come from the former stocks of the Swiss Army.
Most of the parts are original Mercedes or Bosch items that were manufactured for the Puch 230 GE.
