cylinder head cover

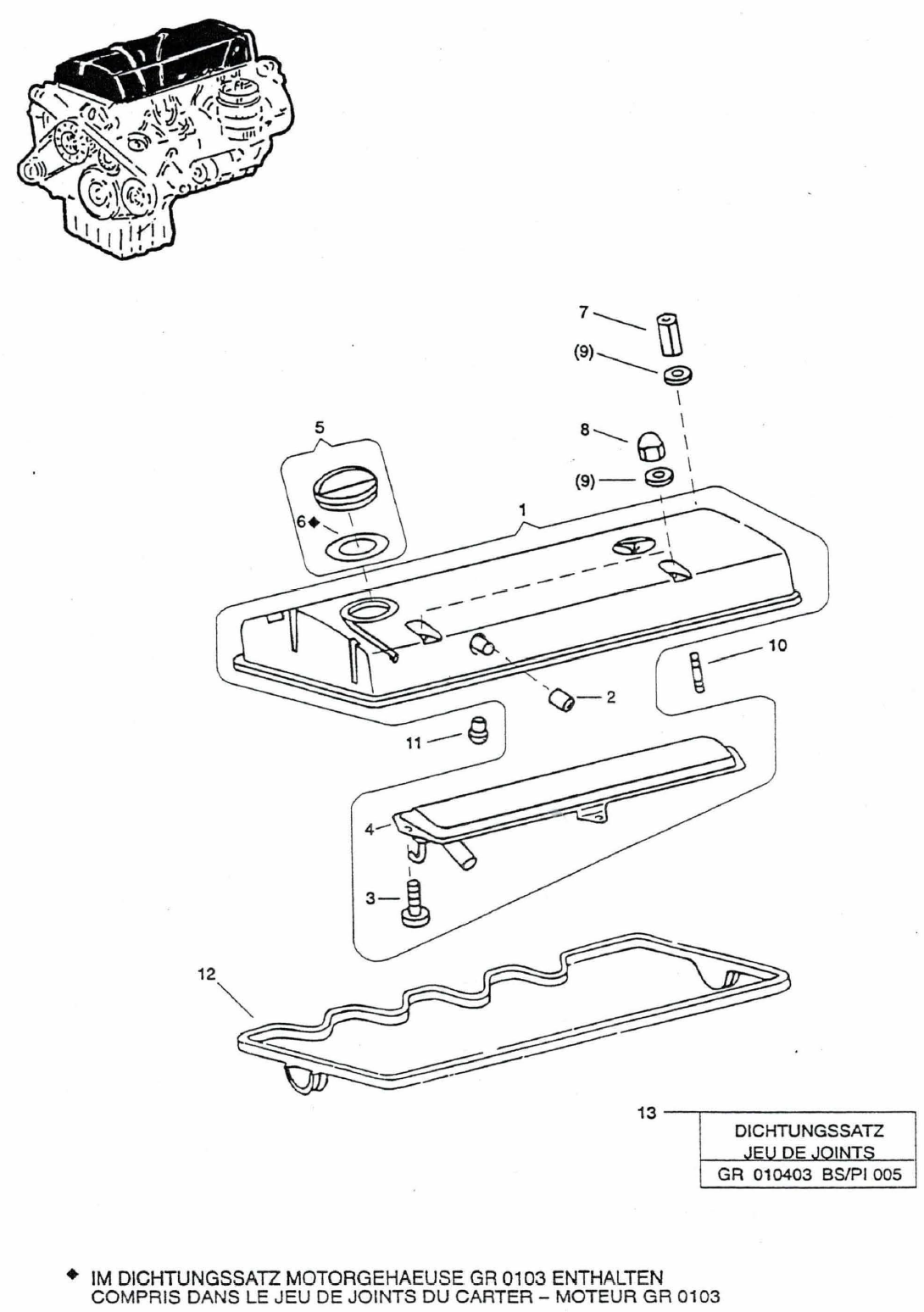

Product overview by image number (exploded view)

1. CYLINDER HEAD COVER
1. CYLINDER HEAD COVER

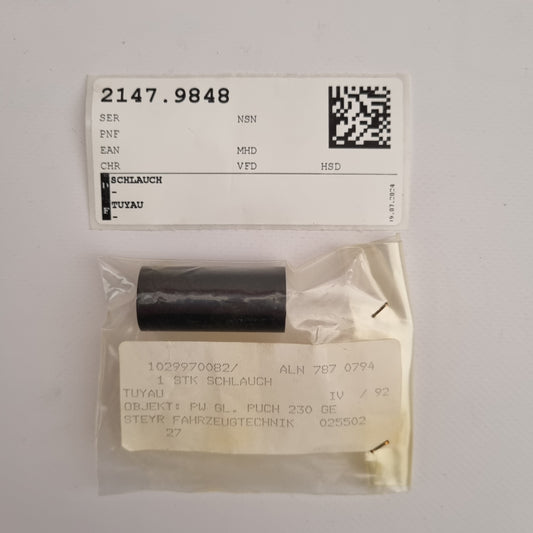

2. HOSE
3. CUTTING SCREW A M5X10 DIN 7516

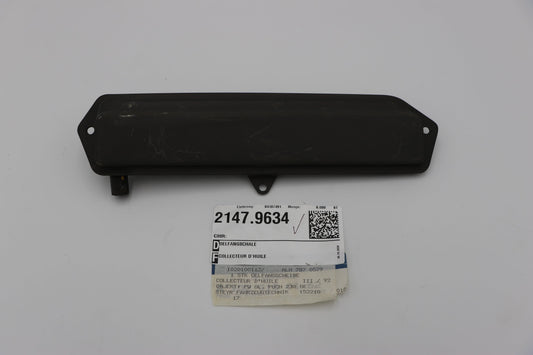

4. OIL TRAY
5. LID d38/63X28MM PLASTIC
5. COVER ST (ENGINE OIL FILLER CAP)
5. COVER ST (ENGINE OIL FILLER CAP)

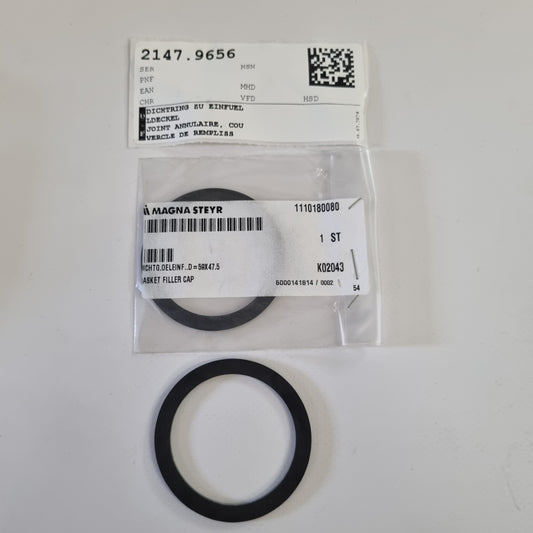

6. SEALING RING 47.5X59MM FOR LID
6. SEALING RING 38.5X59MM FOR LID

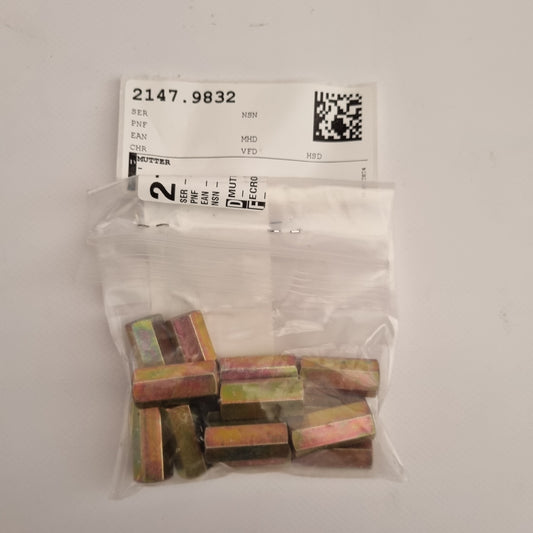

7. MOTHER

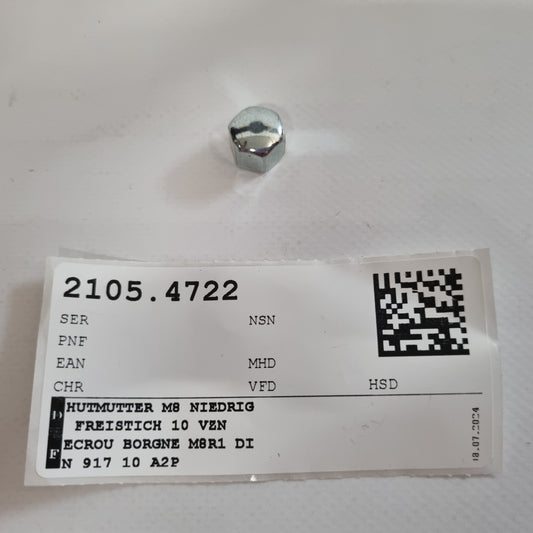

8. CAP NUT M8R1 DIN 917 10 A2P
9. WASHER A d8.4/16X1.6MM DIN 125
10. STUD SCREW M8X50/16/22 DIN 835

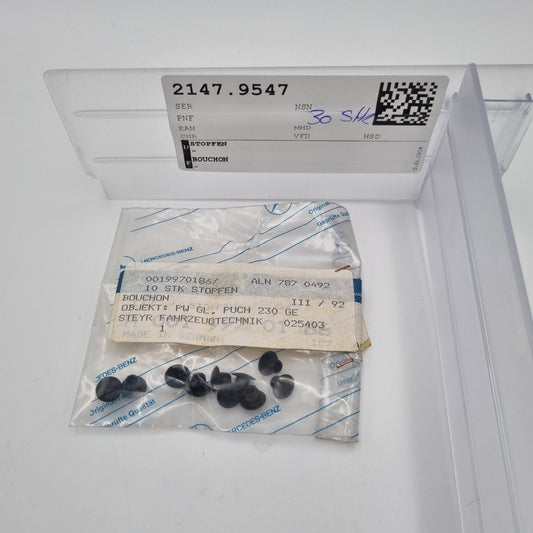

11. PLUG

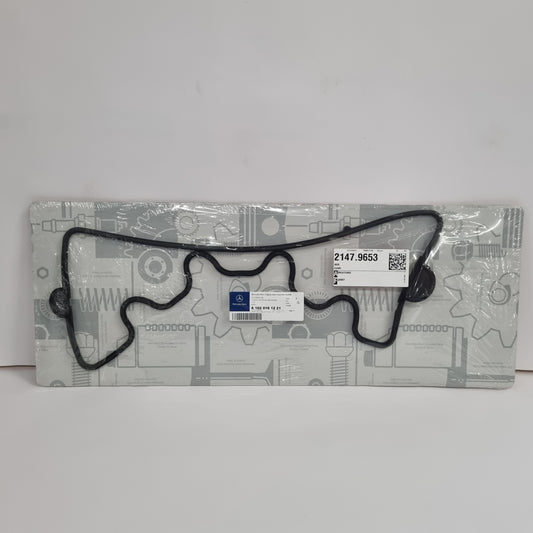

12. SEAL

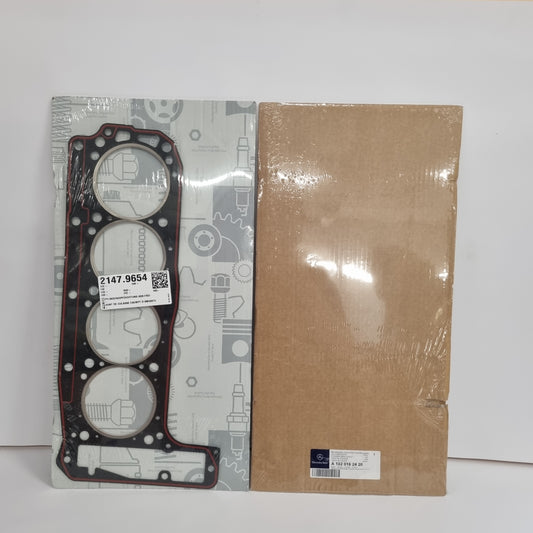

13. GASKET SET ASB FREE FOR

Do you need help?

Check the exploded view to see which spare part you need.

You can find the corresponding number in the product overview.

If you're unsure or can't find the right spare part, don't hesitate to contact us!
('Contact' > 'Contact us')

The spare parts come from the former stocks of the Swiss Army.
Most of the parts are original Mercedes or Bosch items that were manufactured for the Puch 230 GE.
